| STEEL | Critical Dimensions | |||||||
| Part Number | Chuck Dia Inch | Groove Width G | Bolt Size |
Center to Center D |
Hole to Front J | Width Inch C | Length Inch B |
Height Inch A |
| VKT 10200F | 10" | 0.630 | 12MM | 1.181 | 2.375 | 1.50 | 4.50 | 2.00 |
| VKT 10300F | 0.630 | 12MM | 1.181 | 2.375 | 1.50 | 4.50 | 3.00 | |
| VKT 10400F | 0.630 | 12MM | 1.181 | 2.375 | 1.50 | 4.50 | 4.00 | |
| VKT 10600F | 0.630 | 12MM | 1.181 | 2.375 | 1.50 | 4.50 | 6.00 | |
| VKT 10201F | 0.630 | 12MM | 1.181 | 2.875 | 1.50 | 5.00 | 2.00 | |
| VKT 10301F | 0.630 | 12MM | 1.181 | 2.875 | 1.50 | 5.00 | 3.00 | |
| VKT 10205F | 0.630 | 12MM | 1.181 | 2.875 | 2.00 | 5.25 | 2.00 | |
| VKT 10305F | 0.630 | 12MM | 1.181 | 2.875 | 2.00 | 5.25 | 3.00 | |
| VKT 10405F | 0.630 | 12MM | 1.181 | 2.875 | 2.00 | 5.25 | 4.00 | |
When ordering Steel specify "P" for Pointed or "F" for Flat at the end of the part number. (example: VKT 5150P)

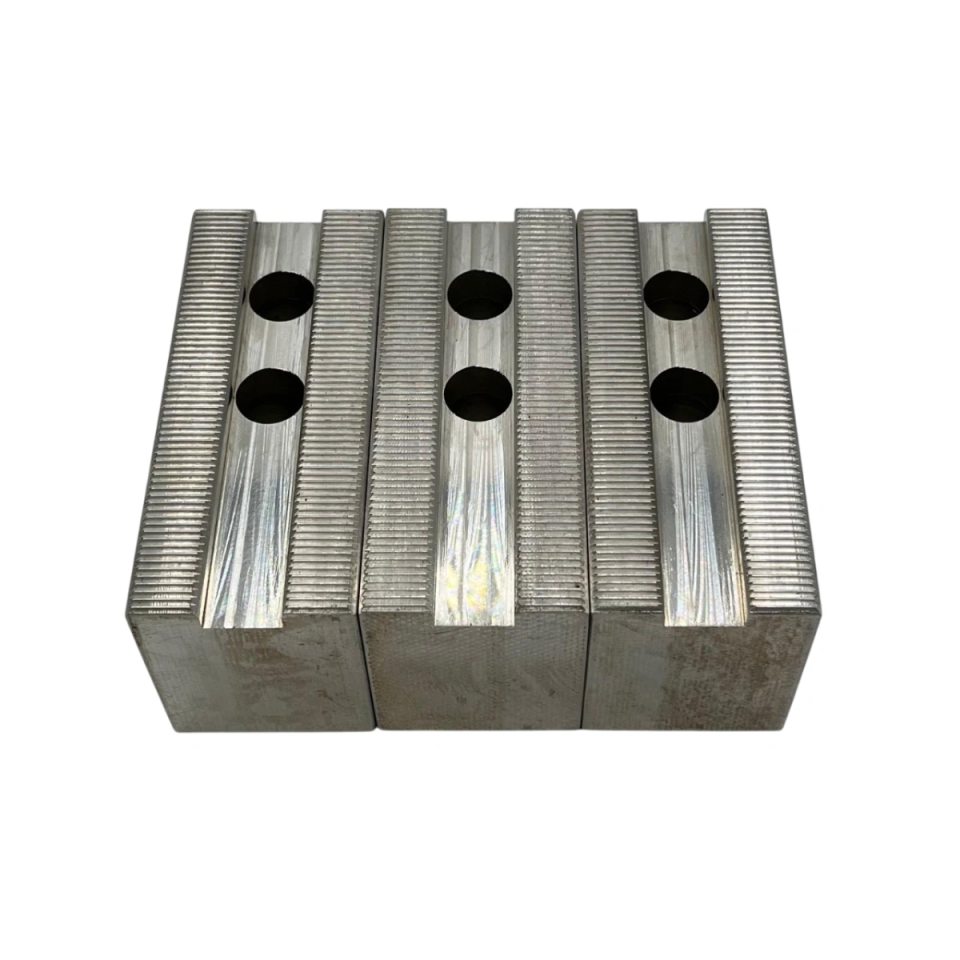

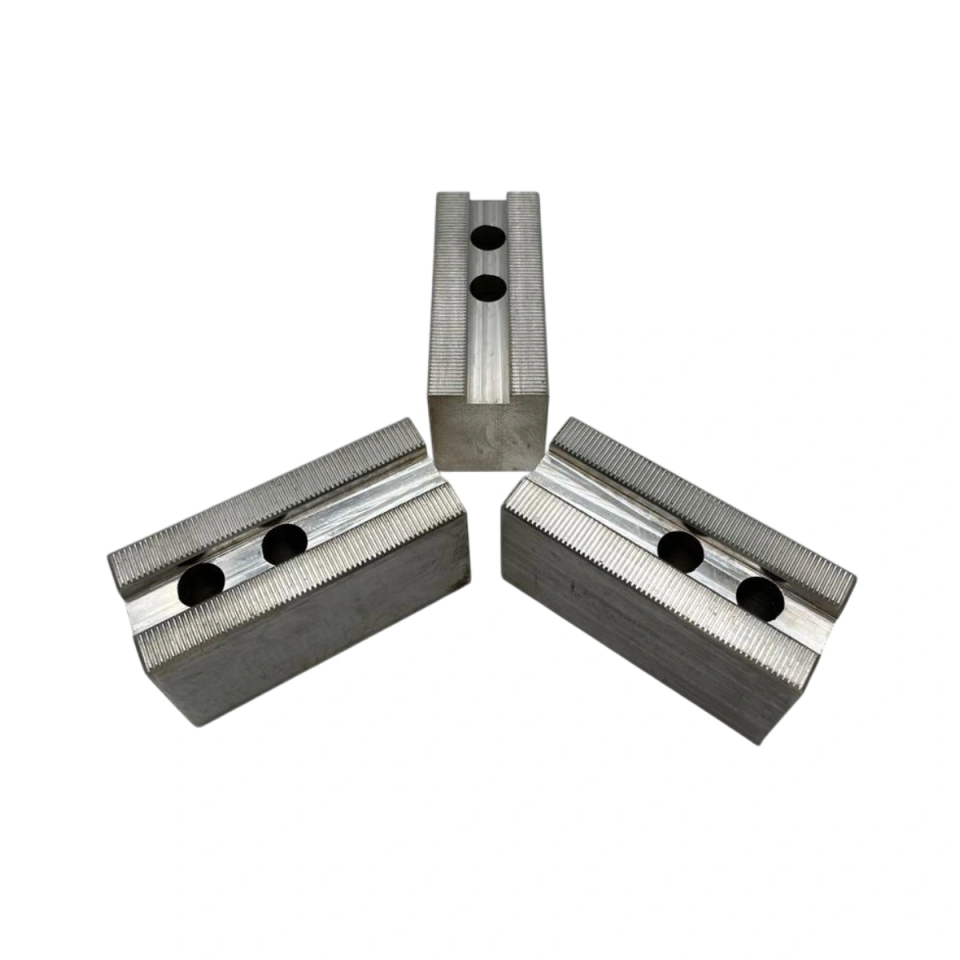

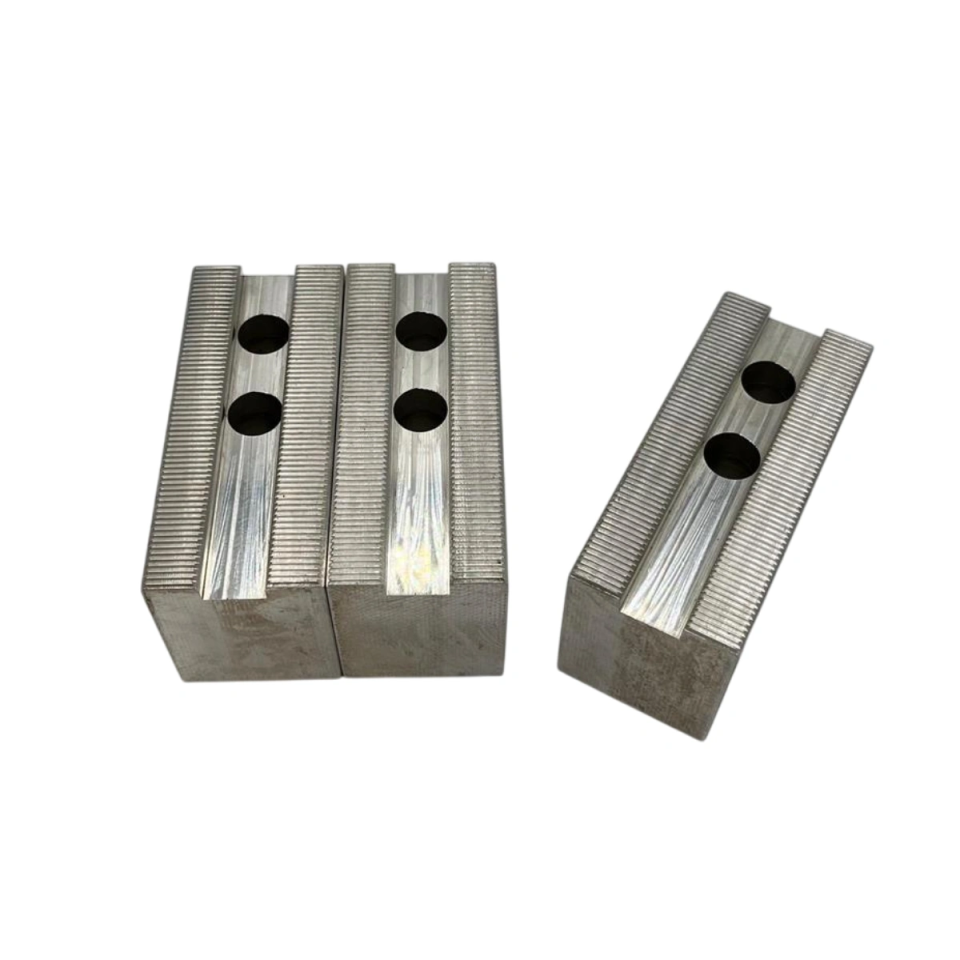

When ordering Aluminum specify "AP" for Aluminum Pointed, or "AF" for Aluminum Flat at the end of the part number.
